Suzuki Swift 1.5 (2008–2010) Rack End / Inner Tie Rod – Left or Right Front
Suzuki Swift 1.5 (2008–2010) Rack End / Inner Tie Rod – Left or Right Front
SKU: SUZSWIF10RE

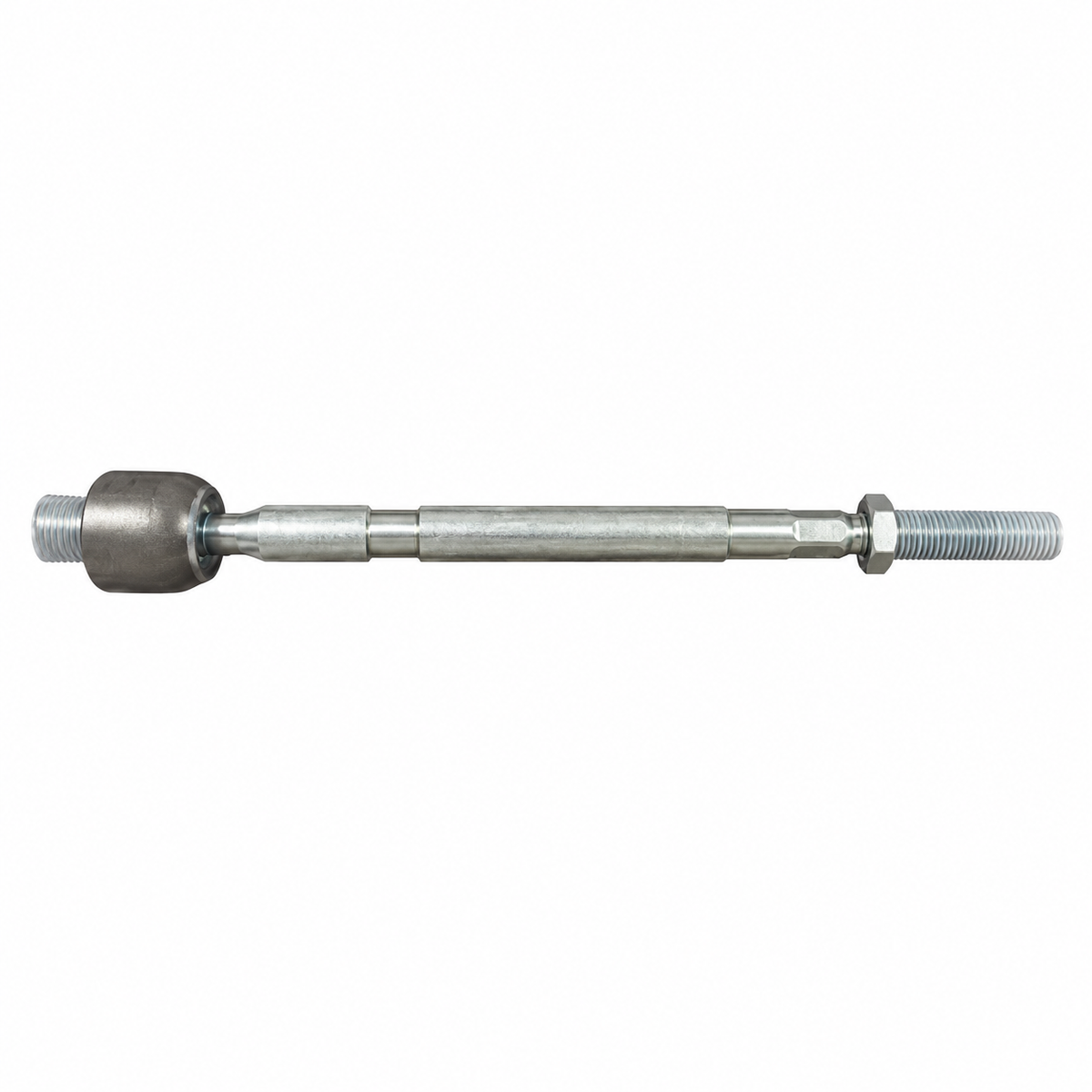

New Replacement Suzuki Swift 1.5 Rack End / Inner Tie Rod – Left or Right Front
Quality new replacement front steering rack end suitable for the Suzuki Swift 1.5 petrol (RS/ZC21) models from 2008 to 2010.
The rack end, also known as an inner tie rod or axial joint, connects the steering rack to the outer tie rod end and transfers steering movement to the front wheels.
A worn or damaged rack end may cause excessive steering play, knocking noises, poor steering response and uneven front tyre wear. Replacing a faulty rack end helps restore accurate steering control and reliable steering system operation.
PRODUCT FEATURES
-
New replacement steering rack end / inner tie rod
-
Suitable for left or right front installation
-
Designed for the Suzuki Swift 1.5 front steering system
-
M18 × 1.5 steering rack thread
-
M12 × 1.25 outer tie rod connection
-
305 mm catalogue length
-
Replacement for worn or damaged inner steering joints
-
Supplied individually
SUITABLE FOR
Suzuki Swift Hatchback (RS/ZC21)
-
Suzuki Swift 1.5 GL (2008–2010)
-
Suzuki Swift 1.5 GLS (2008–2010)
Engine: 1.5L Petrol – M15A
PRODUCT SPECIFICATIONS
| Specification | Details |
|---|---|
| Product Type | Steering Rack End / Inner Tie Rod |
| Position | Front Steering |
| Side | Left or Right |
| Steering Rack Thread | M18 × 1.5 |
| Outer Tie Rod Thread | M12 × 1.25 |
| Catalogue Length | 305 mm |
| Vehicle Make | Suzuki |
| Vehicle Model | Swift (RS/ZC21) |
| Engine | 1.5L Petrol – M15A |
| Model Years | 2008–2010 |
| Quantity | 1 Rack End |
| Condition | New Replacement |
| SKU | SUZSWIF10RE |
IMPORTANT FITMENT INFORMATION
-
Suitable for the listed South African Suzuki Swift 1.5 petrol models.
-
Designed for the front steering system.
-
Suitable for either the left or right front side.
-
This is the inner steering rack end, not the outer tie rod end.
-
Not listed for the later Suzuki Swift 1.4 K14B generation (2011–2017).
-
The Suzuki Swift Sport 1.6 application is not confirmed for this part.
-
Confirm the 305 mm catalogue length, M18 × 1.5 steering rack connection and M12 × 1.25 outer tie rod connection against the original component before ordering.
-
Inspect the outer tie rod ends and steering rack for additional wear when replacing steering linkage components.
Steering Maintenance Recommendation: After replacing worn steering components, a professional wheel alignment is recommended to help maintain accurate steering, stable road handling and even tyre wear.
Couldn't load pickup availability
Product Details & Specifications ⌄
New Replacement Suzuki Swift 1.5 Rack End / Inner Tie Rod – Left or Right Front
Quality new replacement front steering rack end suitable for the Suzuki Swift 1.5 petrol (RS/ZC21) models from 2008 to 2010.
The rack end, also known as an inner tie rod or axial joint, connects the steering rack to the outer tie rod end and transfers steering movement to the front wheels.
A worn or damaged rack end may cause excessive steering play, knocking noises, poor steering response and uneven front tyre wear. Replacing a faulty rack end helps restore accurate steering control and reliable steering system operation.
PRODUCT FEATURES
-
New replacement steering rack end / inner tie rod
-
Suitable for left or right front installation
-
Designed for the Suzuki Swift 1.5 front steering system
-
M18 × 1.5 steering rack thread
-
M12 × 1.25 outer tie rod connection
-
305 mm catalogue length
-
Replacement for worn or damaged inner steering joints
-
Supplied individually
SUITABLE FOR
Suzuki Swift Hatchback (RS/ZC21)
-
Suzuki Swift 1.5 GL (2008–2010)
-
Suzuki Swift 1.5 GLS (2008–2010)
Engine: 1.5L Petrol – M15A
PRODUCT SPECIFICATIONS
| Specification | Details |
|---|---|
| Product Type | Steering Rack End / Inner Tie Rod |
| Position | Front Steering |
| Side | Left or Right |
| Steering Rack Thread | M18 × 1.5 |
| Outer Tie Rod Thread | M12 × 1.25 |
| Catalogue Length | 305 mm |
| Vehicle Make | Suzuki |
| Vehicle Model | Swift (RS/ZC21) |
| Engine | 1.5L Petrol – M15A |
| Model Years | 2008–2010 |
| Quantity | 1 Rack End |
| Condition | New Replacement |
| SKU | SUZSWIF10RE |
IMPORTANT FITMENT INFORMATION
-
Suitable for the listed South African Suzuki Swift 1.5 petrol models.
-
Designed for the front steering system.
-
Suitable for either the left or right front side.
-
This is the inner steering rack end, not the outer tie rod end.
-
Not listed for the later Suzuki Swift 1.4 K14B generation (2011–2017).
-
The Suzuki Swift Sport 1.6 application is not confirmed for this part.
-
Confirm the 305 mm catalogue length, M18 × 1.5 steering rack connection and M12 × 1.25 outer tie rod connection against the original component before ordering.
-
Inspect the outer tie rod ends and steering rack for additional wear when replacing steering linkage components.
Steering Maintenance Recommendation: After replacing worn steering components, a professional wheel alignment is recommended to help maintain accurate steering, stable road handling and even tyre wear.
