Radiator (Automatic) || Suzuki Swift, Baleno, Dzire, Fronx & Toyota Starlet
Radiator (Automatic) || Suzuki Swift, Baleno, Dzire, Fronx & Toyota Starlet
SKU: SUZSWIF30RADA
-
Automatic Radiator – Suzuki Swift, Baleno, Dzire, Fronx & Toyota Starlet
New replacement engine cooling radiator for selected Suzuki and Toyota petrol models with automatic or automated transmission configurations.
Features a brazed flat-tube cooling core designed for effective heat transfer and reliable engine cooling.
PRODUCT FEATURES
-
New replacement engine cooling radiator.
-
Brazed flat-tube radiator core with cooling fins.
-
Aluminium core with upper and lower radiator tanks.
-
28mm radiator inlet and outlet connections.
-
Automatic-type radiator configuration with additional lower-tank fittings as pictured.
-
Supplied as one complete radiator assembly.
SUITABLE FOR
SUZUKI
-
Swift 1.2 K12M (A2L): 2018–2024, AMT models.
-
Baleno 1.4 K14B: 2016–2022, automatic models.
-
Baleno 1.5 K15B: 2022–Present, automatic models.
-
Dzire 1.2 K12M: 2018–2024, AMT models.
-
Fronx 1.5 K15B: 2023–Present, automatic models.
TOYOTA
-
Starlet 1.4 K14B: 2020–2022, automatic models.
-
Starlet 1.5 K15B: 2022–Present, automatic models.
PRODUCT SPECIFICATIONS

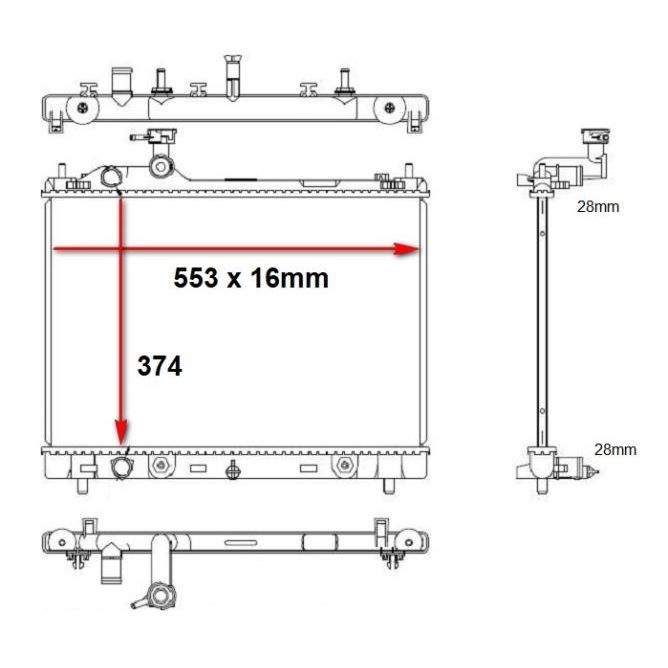

Specification Details Product Type Engine Cooling Radiator Radiator Design Brazed Flat-Tube Transmission Application Automatic / AMT configurations listed above Core Width (Technical Drawing) 553 mm Core Height (Technical Drawing) 374 mm Core Thickness (Technical Drawing) 16 mm Inlet Diameter 28 mm Outlet Diameter 28 mm Quantity Supplied 1 Radiator Condition New Replacement SKU SUZSWIF30RADA IMPORTANT FITMENT INFORMATION

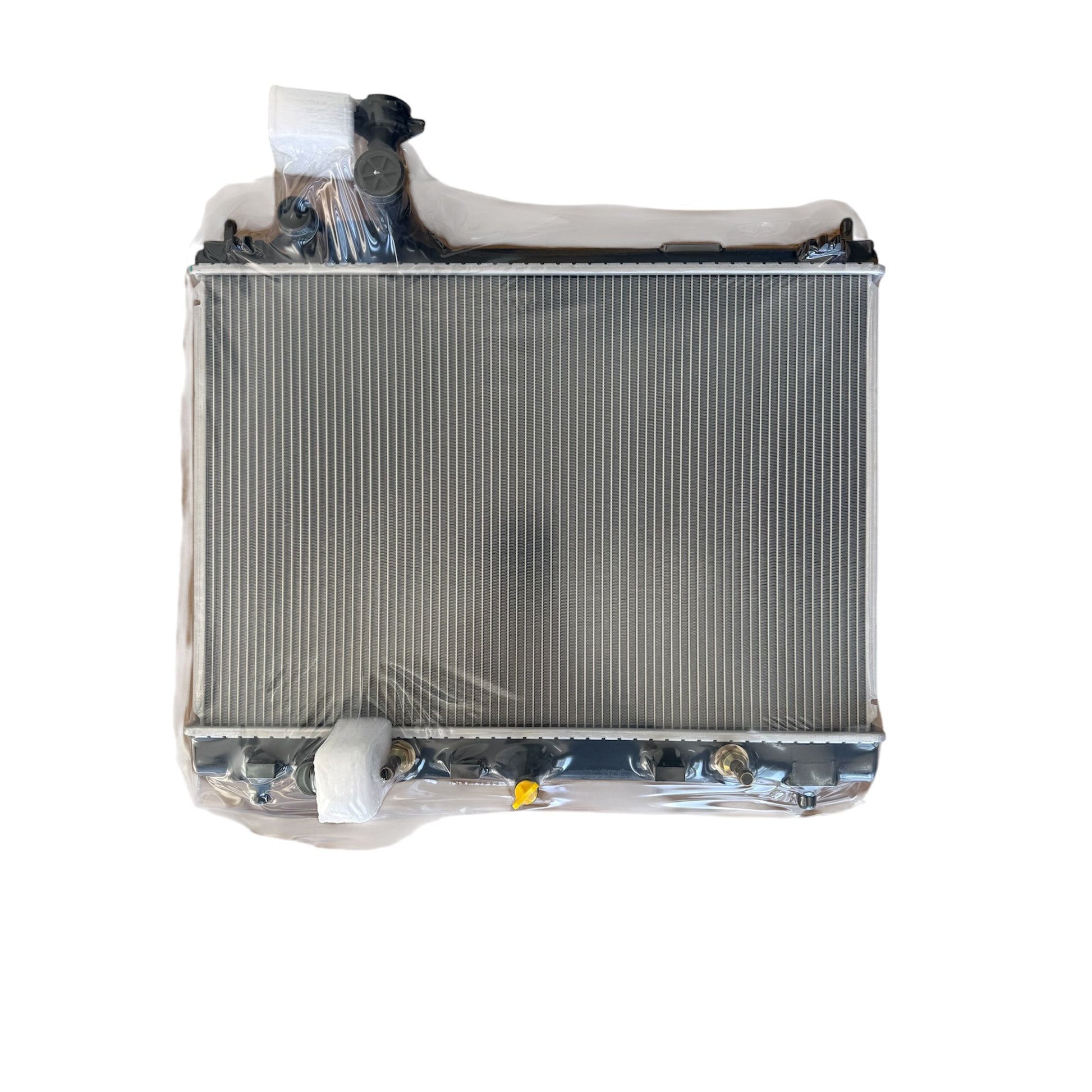

This is the automatic-type radiator featuring the connection arrangement shown in the product images.
The Suzuki Swift 2018–2024 application covers the 1.2 K12M A2L generation with automated manual transmission.
The redesigned Suzuki Swift introduced in late 2024 uses the newer Z12E engine and a different automatic transmission configuration.
The separately listed manual radiator is available under a different SKU.
-
