Suzuki & Toyota * Rack End
Suzuki & Toyota * Rack End
SKU: SUZBAL10RE

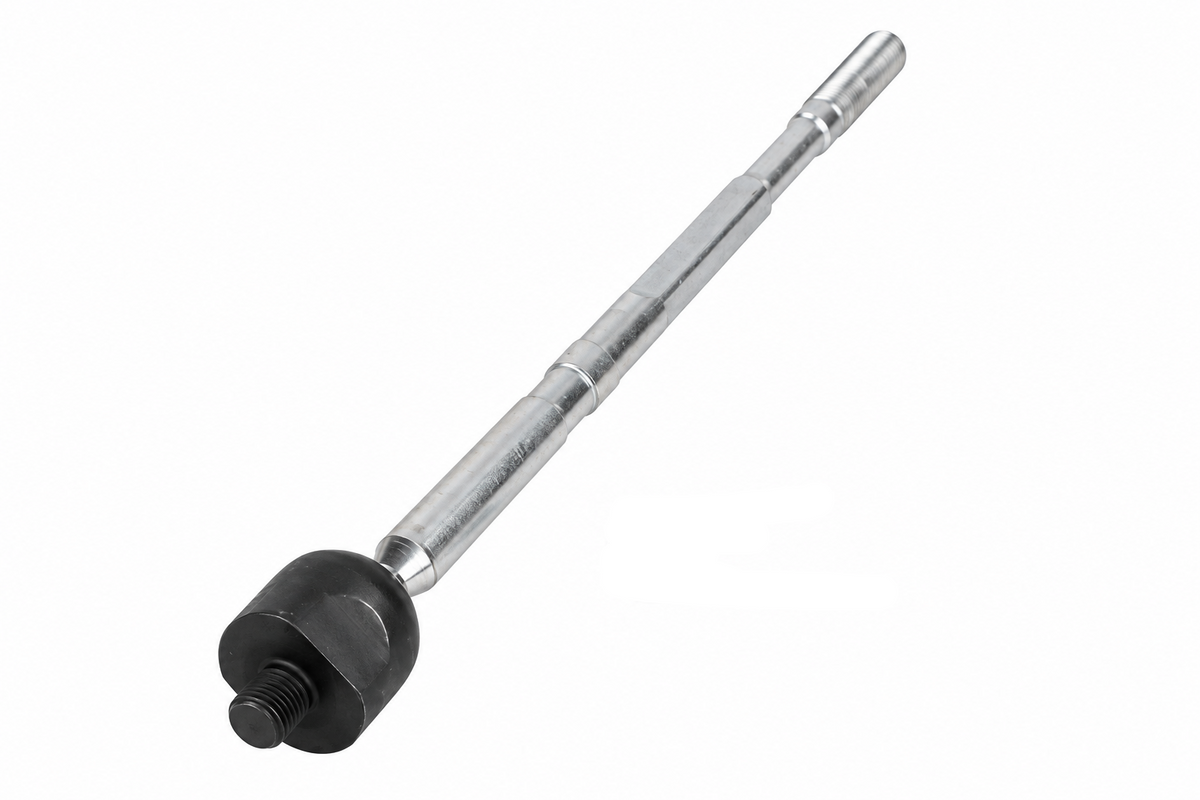

New Replacement Rack End
Suitable for:
- Suzuki Baleno 1.4 2016-2022
- Suzuki Dzire 2018-2024
- Toyota Starlet 1.4 2020-2022
Product Specifications:
-
Overall length: Approximately 335 mm (measured from thread tip to thread tip).
-
Steering rack-side thread: M14 × 1.5.
-
Outer tie rod-end thread: M14 × 1.5.
-
Position: Front steering – left or right, subject to vehicle fitment.
Important Fitment Information:
Certain Suzuki and Toyota models may use different steering rack ends despite having the same engine capacity and year model.
For example, some Suzuki Swift and Dzire variants use different steering rack-side thread sizes, including M14 and M18. These versions are not interchangeable.
Please also note that manufacturers may quote slightly different overall lengths (approximately 335–339 mm) depending on their measuring methods and part specifications. Similar measurements do not automatically guarantee compatibility.
Before ordering: Please compare the thread sizes and overall dimensions with your original rack end.
Couldn't load pickup availability
Product Details & Specifications ⌄
New Replacement Rack End
Suitable for:
- Suzuki Baleno 1.4 2016-2022
- Suzuki Dzire 2018-2024
- Toyota Starlet 1.4 2020-2022
Product Specifications:
-
Overall length: Approximately 335 mm (measured from thread tip to thread tip).
-
Steering rack-side thread: M14 × 1.5.
-
Outer tie rod-end thread: M14 × 1.5.
-
Position: Front steering – left or right, subject to vehicle fitment.
Important Fitment Information:
Certain Suzuki and Toyota models may use different steering rack ends despite having the same engine capacity and year model.
For example, some Suzuki Swift and Dzire variants use different steering rack-side thread sizes, including M14 and M18. These versions are not interchangeable.
Please also note that manufacturers may quote slightly different overall lengths (approximately 335–339 mm) depending on their measuring methods and part specifications. Similar measurements do not automatically guarantee compatibility.
Before ordering: Please compare the thread sizes and overall dimensions with your original rack end.
